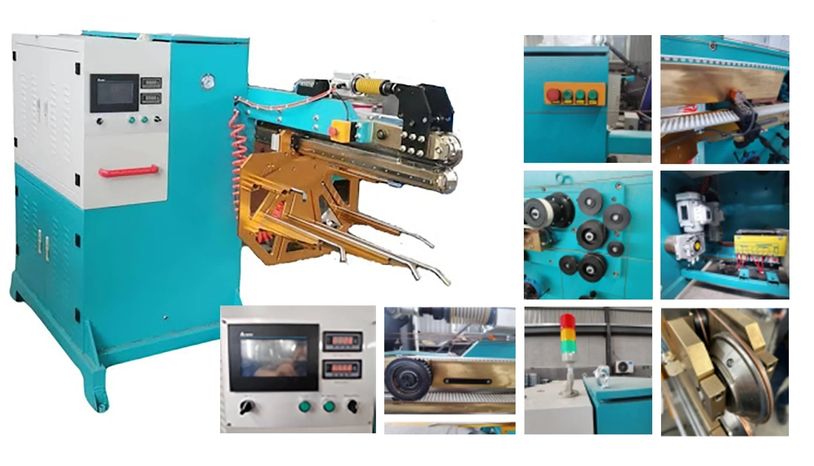

STITCHWELDER MACHINE - Model SW1000

 Looking for precision and efficiency in sheet metal welding? Look no further, the Bravo Stitchwelder is the solution for speed, airtightness, and precision! Designed to save you time and material.

Specs



  • The strongest machine on the market: 100 KVA, welds up to 20 Ga
  • Easy programming in English and/or Spanish: Navigate effortlessly with an easy-to-use touchscreen interface.
  • Internationally recognized and available components, including but not limited to: Schneider Electric, Delta HMI and PLC,
  • NSK, HIWIN bearings
  • Diameter range: 100 to 1000 mm (4 – 40 inches)
  • Thickness capacity: 28 – 20 Ga Galvanized Sheet
  • Overlap: 6 mm (0.250 in)
  • Welding length: 50 to 1000 mm (2 – 39 inches)
  • Wire diameter: 2.0 to 2.4 mm
  • Electricity: 220 V/3 PH/60 Hz
  • Footprint: 110 x 48 in Weight: 4,620 lbs
