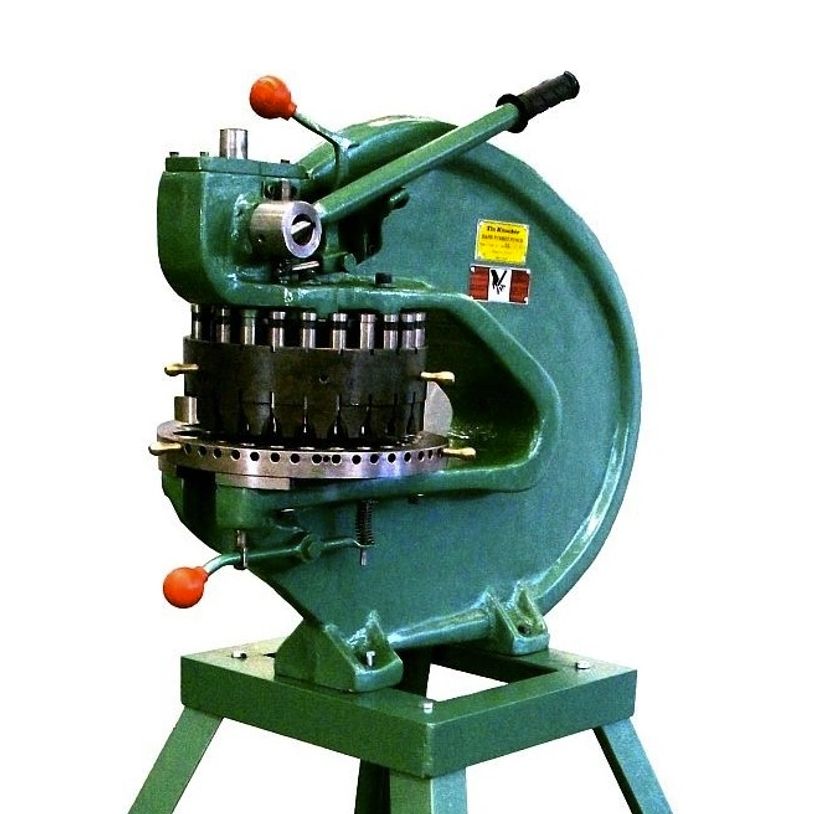

TK 18 Station Turret Punch

      $8,450.00



 Introducing the Tin Knocker No. 18 Hand Turret Punch. A fast,accurate and flexible method of punching in the shop. Change punch & die sizes in seconds, not minutes. Priced at what you would expect to pay for a used Rotex style machine, this 18 station, 8-ton punch is built to last. The solid cast and machined C frame and precision machined and ground turret make for smooth effortless punching over the user’s lifetime. Accepts ROTEX punches and dies.

 Optional Stand $350

Specs



  • Weight: 530 lbs
  • Dimensions: 30 x 37 x 58 in
  • Capacity: 8 Tons
  • Throat Depth: 18″
  • Tooled Stations: 18
  • Punch Range: 1/8″-2 1/4″
  • Punch Sizes: .1/8″,5/32″,3/16″,7/32″,1/4″,9/32″,5/16″,3/8″,1/2″,5/8″,3/4″,7/8″,1″,1 1/8″,1 1/4″,1 1/2″,2″,2 1/4″
  • Actuation: Hand Actuated
  • Warranty: 1 Year

See Item Manual
