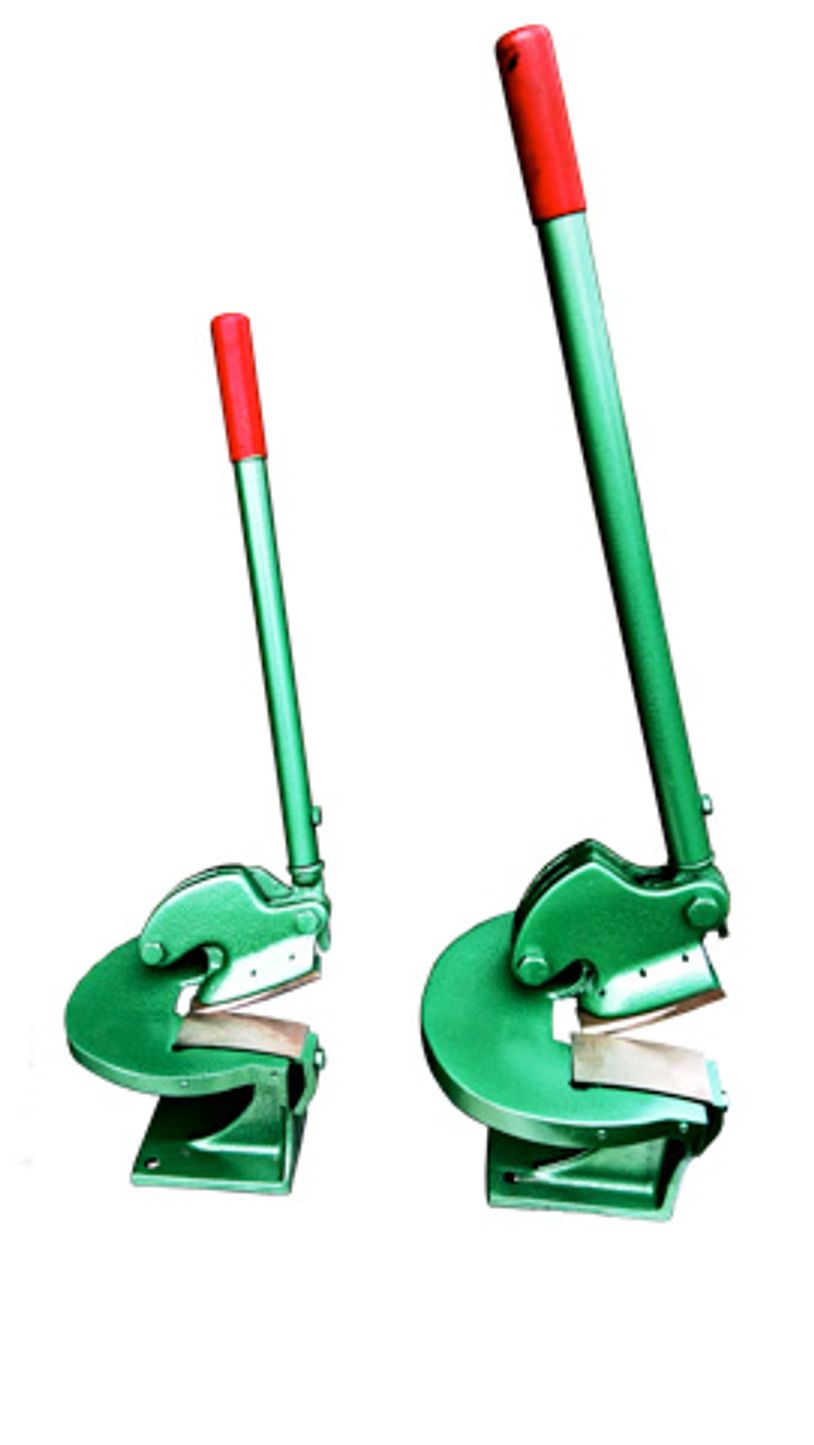

TK No. 1 and No.2Hand Shear

---

        No.1  $550.00 or No.2 $650.00

 The throat less shears from Tin Knocker come in two capacities, 14ga & 10ga. These machines make awesome cutting tools. Both models use a unique shoulder design that allows you to turn the metal in any direction during the cut. These hand shears are set up for clean, burr free cuts.

• Max Capacity 10ga Mild Steel
• Max Capacity 14ga Stainless Steel
• 15” Height (Less Handle)
• 38 lbs

         $3,950.00

• Weight: 1215 lbs
• Dimensions: 60 x 34 x 42 in
• Capacity: 16 Ga Mild Steel
• Shearing Length: 52″
• Back Gauge: 25″ with Engraved Rule
• Floor Space: 60″ x 72″

         $8,550.00

 The Tin Knocker power squaring shear makes shearing light gauge metal easy. The design and features make shearing accurate and efficient. This shear can accommodate 52” sheet with a maximum capacity of 16-gauge mild steel. The hydraulically powered unit features fast and smooth shearing action, rear operated parallel rack and pinion back gauge, reversible 4 ft. squaring arm with embedded scale and 3 drop stop gauges.  Also includes one shot lube system.  No one offers a 52″ x 16 gauge Hydraulic Shear with greater value.  Pay less and get more!

• Weight: 1350 lbs.
• Dimensions: 72 x 48 x 36 in.
• Maximum shearing capacity, mild steel: 16 ga. / 1,6 mm
• Maximum shearing capacity, stainless steel: 20 ga. / 1,0 mm
• Maximum cutting length: 52 in. / 1320 mm
• Back gauge range: 30 in. / 762 mm
• Front gauge range: 37 in. / 940 mm
• Standard motor: 3 hp. – 220 Volt/ 1 phase / 60HZ
• Floor space, gauges in position: 66 x 76 x 42 in/ 1676 x 1930 x 1070 mm

        $4450.00

This combination payoff cradle and hand shear cuts light gauge sheet metal, paper and thin plastic.

• Scissor type with a hardened blade.
• Easily cuts:
  • Stainless steel
  • Galvanized steel
  • Aluminum
  • PVC
  • ASJ
  • Kraft paper
  • And other jacketing materials
• Cuts galvanized or stainless jacketing up to 26-gauge, aluminum up to 22-gauge.
• Bearing mounted roller cradle supports bulk rolls of material up to 400lbs.
• No material mandrel required.
• Point of operation safety guard.

• Weight: 650 lbs
• Dimensions: 55 x 74 x 70 in
• Capacity: 26-gauge galvanized/stainless steel & 22-gauge aluminum
• Maximum Sheet Width: 48″
• Table top height or working surface height: 34″

        $4950.00

Features:

• Hand crank feed operation for easy cutting
• Equipped with back gauge for aid in positioning work

• Capacity mild steel: 16 ga.
• Capacity stainless: 20 ga.
• Circle diameter: 3”-42”
• Diameter of cutters: 2”
• Maximum flange depth: 3”
• Depth head throat: 10”
• Depth of tail stock: 5 – 1
• Horsepower: 1/3 HP
• Cutter speed: 110
• Shipping weight: 400 lbs.

Includes:

• Floor Legs
• Rack & Pinion Feed for Tail Stock
• Flanging Rolls
