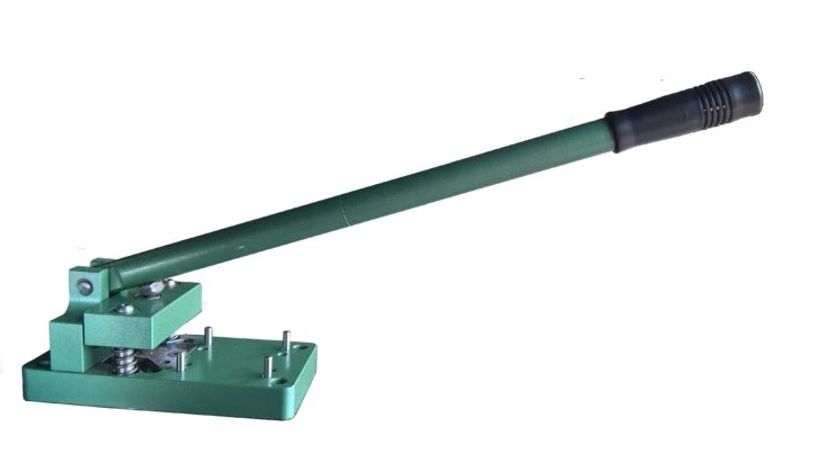

TK Drive Cleat Notcher

---

   $550.00

 This tool notches drive cleats giving drives a rounded end for an easier installation. Notch drive cleats before or after they are formed. Easy to use with a spring loaded push handle. This tool easily mounts to any bench.

• Capacity 22-gauge mild steel
• Machine Dimension, 21” Length x 4” Width x 10” Height
• Shipping Dimension, 11” Length x 4” Width x 6” Height
• Approximate Weight, 18 lbs.

  $2,350.00

SHEAR, NOTCH & BEND ANGLE IRON WITH EASE.!

Great for making sign frames, trailer frames, machine stands, or anything using angle iron.

• Height 33”
• Max. Capacity: 2” x 2” x ¼”
• Footprint: 21 ½” x 26”
• Weight 285 lbs.

Stand and Extension Bar, Included

 $1,100.00

A heavy versatile tool capable of not only notching to capacity but also shearing and piercing operations in lighter gauge

Optional Stand $195  TK 1655 Hand Corner Notcher. A heavy versatile tool capable of not only notching to capacity but also shearing and piercing operations in lighter gauge. Of heavy cast iron and fabricated construction, this table top machine comes with front gauges and surface ground table. Stand is optional.

• Weight: 170 lbs
• Capacity: 16 Ga Mild Steel
• Blade Length: 5″
• Angle: 90 Degrees

   $2,550.00

 The TK Edge Notcher can now be ordered with either:  Slot Notch or “V” Notch!  Includes both sets of tooling 1 machine to 2 notches.

 Machine Specifications:

• Motor - 1/3 HP, 110v, Single Phase, 60Hz AC
• Capacity - 20 Gauge Mild Steel
• Speed - Variable Minimum 18 FPM
• Overall Dimensions - 21" Long, 16 1/2" High, 13" Deep
• Approx. Shipping Weight - 290 Lbs.

Specifications V Notch:

• Depth of notch range: 0 to 3/4"
• V is at 15 degrees
• Spacing - 3/4" to 1 7/16"

Specifications Slot Notch:

• Depth of Notch - 0 to 3/4"
• Width of Notch - 3/16"
• Spacing - 3/4" to 1 7/16"

    $3,950.00

• Hardened steel blades (reversible uppers)
• Split head: allows for and adjustable tab – 0-1”
• Gage Plate (table)
• 2 – Gauges (45 degree mitre on one end)
• Angle Iron Stand
• Hydraulic System

• Capacity in mild steel: 14 gauge
• Maximum notch in one cut: 6” x 6”
• Tab capacity in mild steel: 1” in 16 gauge
• Throat depth: 6-3/4 inches
• Height (overall): 55 inches
• Gage size: 6-1/4” x 2”
• Blade to apex to front of table: 9 inches
• Electrics: 115 Volt AC Amp, 1 phase
• Controls: Double guarded foot switch
• Shipping Weight: 425 lbs.
