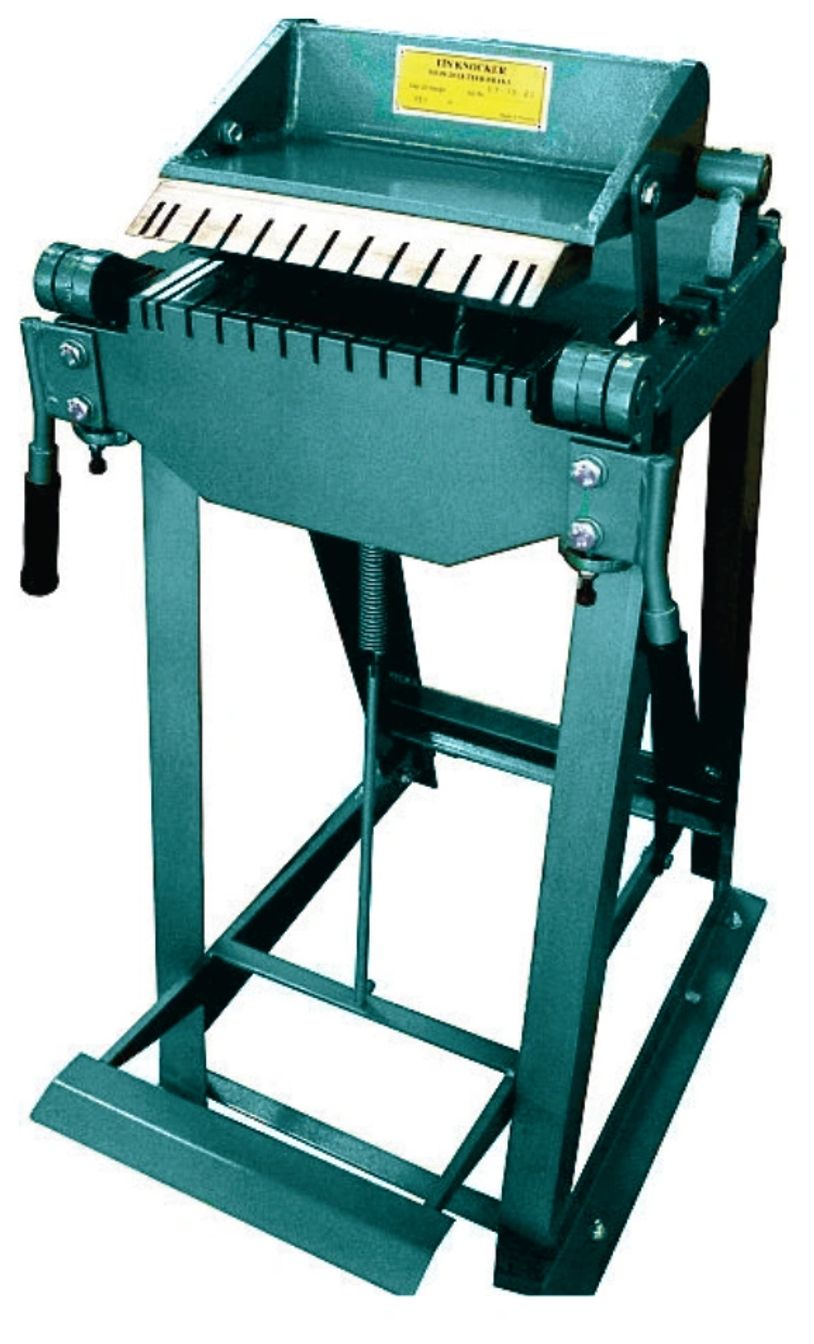

TK Letter Brake

  $2,250.00



Make channel letters and more!!!

Designed to bend sheet metal strips with one or more bent-up edges or existing seams. “Drum return?” No problem. Can also bend 12″ of straight sheet metal. Foot-operated clamping leaves both hands to handle the material

Specs





  • Weight: 190 lbs
  • Dimensions: 48 x 48 x 46 in
  • Capacity: 20 Ga Mild Steel
  • Approx. Footprint: 25”x22”x42”



See Item Manual

TK 1648 Box & Pan

    $2,250.00



Durable and dependable! The TK box and pan brakes give you all the features you would expect from quality machines. Of all steel welded construction, with adjustable truss bars and bronze bushings, these brakes are built to last. The 1648 comes with removable apron angle and apron insert, permitting .25″ (6.35mm) reverse bends in lighter materials. The nose bar is removable as well, and the brakes are equipped with a precise stop rod for repeat bends.

Optional Stand for $195.

Specs



  • Weight: 493 lbs
  • Dimensions: 64 x 28 x 32 in
  • Capacity: 16 Ga
  • Bend Length: 48″
  • Max Beam Lift: 1.25″
  • Max Box Depth: 4″
  • Min. Reverse Bend: .25
  • Min. Flange: 1″
  • Finger Width: 2,3,4″



See Item Manual

TK 2248 Box & Pan

   $1,450.00



Durable and dependable! The TK box and pan brakes give you all the features you would expect from quality machines. Of all steel welded construction, with adjustable truss bars and bronze bushings, these brakes are built to last. The brakes come with removable apron angle and apron insert, permitting .25″ (6.35mm) reverse bends in lighter materials. The nose bar is removable as well, and the brakes are equipped with a precise stop rod for repeat bends.

Optional Stand for $195.

Specs



  • Weight: 356 lbs
  • Dimensions: 64 x 28 x 32 in
  • Capacity: 22 Ga.
  • Bend Length: 48”
  • Max Beam Lift: 7/8”
  • Max Box Depth: 3”
  • Min. Reverse Bend: 5/16
  • Min. Flange: 3/8”



See Item Manual

TK 422 Portable Brake

   $1,350.00



A true industrial quality portable brake.  TAKE IT TO THE JOB SITE.

Features include:

  • Folding legs for compact transport
  • Lift handles on both ends for ease of handling
  • 4 ft x 22 gauge capacity

Specs



  • Weight: 350 lbs
  • Capacity: 22 Ga Mild Steel
  • Bend Length: 48.25″
  • Beam Lift: 1″

See Item Manual

TK 622 Brake

    $1,950.00



 GREAT FOR CROSS BREAKING DUCT!
6 Ft X 22 Gauge Capacity
With Floor Stand

Specs



  • Weight: 450 lbs
  • Capacity: 22 Ga Mild Steel
  • Bend Length: 6′
  • Included: Bolt-on Apron Angle, Floor Model Legs
  • Beam Lift: 1 1/4″
  • Depth of Box or Pan: 2″ 3sides

See Item Manual
