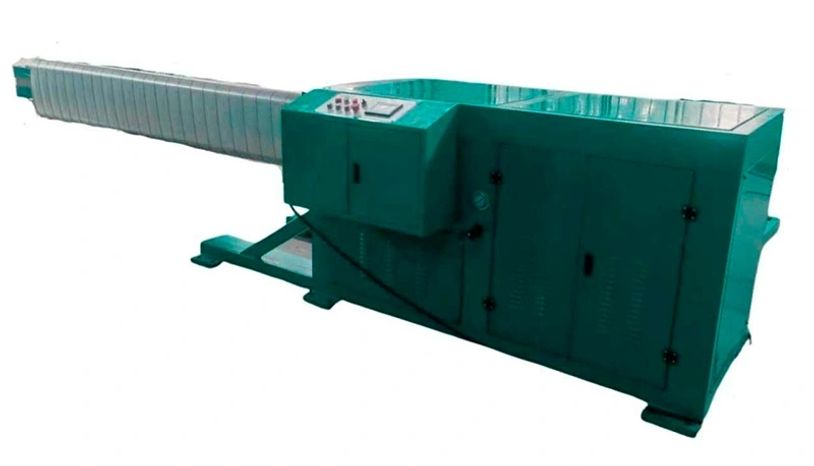

Ovalizer-AL Model

The benefits of Spiral ductwork are:

  • Protection against air leaks
  • Low pressure drop
  • Reduce additional maintenance costs
  • Clean air quality
  • Uniform pressure
  • Easy to clean


But what about space? An ovalizing machine is ideal for ductwork in small buildings where overhead space is at a premium due to electrical, plumbing, and ductwork connections. Oval ducts are also aesthetically pleasing when exposed. With all these advantages, it's no wonder that spiral and oval ducts are among the top products in the HVAC market.


An ovalizer also attracts more customers. If you can provide oval-shaped ducts, you'll sell more.

Specs



  • Capacity: 26 – 18 Ga Galv
  • Duct Length: 122 in / Min Diameter: 14”
  • Molds included: 6”, 8”, 10”, 12”, 14”, 16”, 18”, 20”
  • Spacers: 50, 100, 200, 300, 400, 500, 600 mm
  • Dice made of aluminum (except for the 50mm spacer)
  • Electricity: 18.5KW, 220volts/3phases/60Hz
  • PLC and Touchscreen: Delta
  • Dimensions: 222”×50”×45”
  • Weight: 6,000 lb
