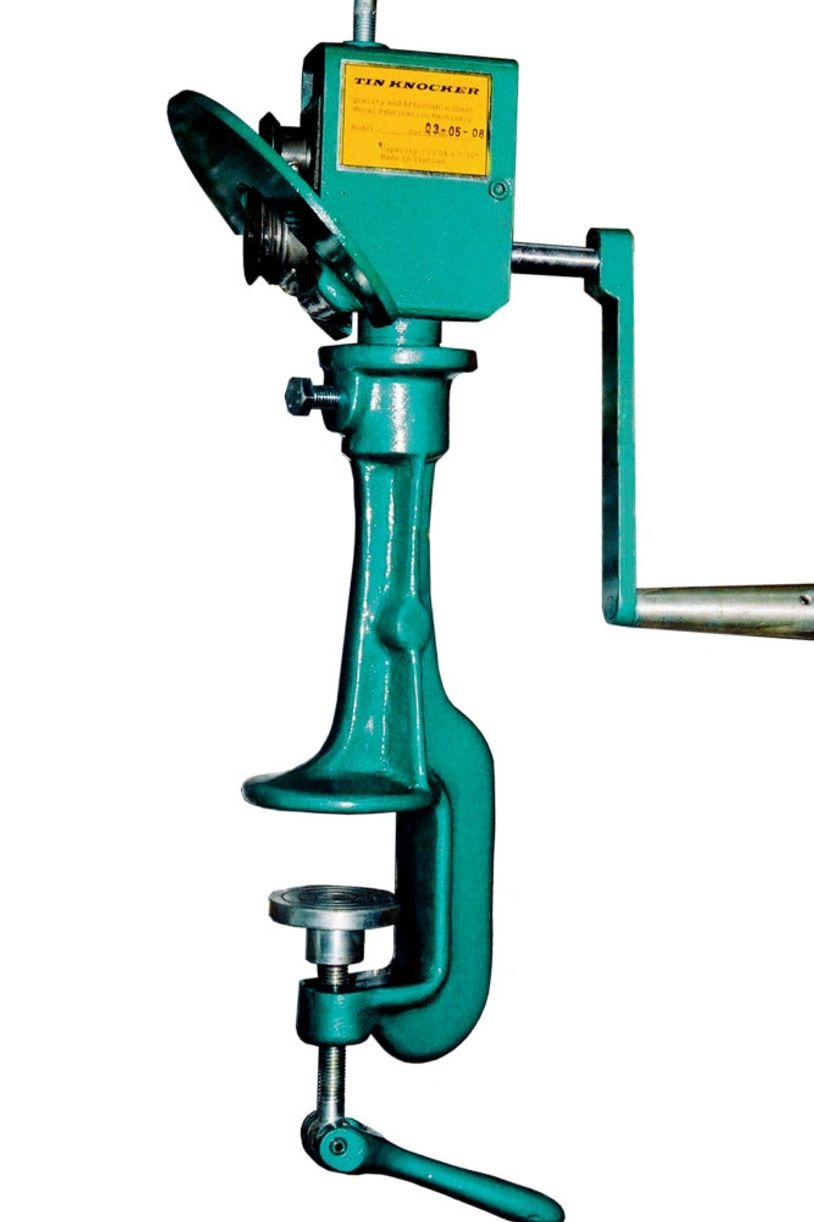

TK Manual Flanger

---

  $950.00

The Tin Knocker Manual Flanger is a simple and durable, bench-mounted machine that creates a 7/32″ right-angle flange on elbows and other radius fittings. It’s lightweight, easy to transport, and can quickly be set up thanks to the robust clamping mechanism.

Quickly and easily adjust the Manual Flanger with the upper crank handle to dial in the distance between rollers and tweak the forming depth- no gauge to set or special tools needed.

• Material Capacity: 20 ga
• Minimum Radius: 1 3/4″
• Flange Dimensions: 7/32", 90°
• Dimensions: 26" x 16" x 12"
• Weight: 35 lbs
• UPS Capable

   $1,050.00

Add this option to turn a 3/16 flange on straight or contoured sheet metal. A great way to get a right angle flange in close quarters, like a trailer or van.

   $2,950.00

This power flanger has the “auto-guide” feature, which automatically controls the forming of a right-angle flange. It will contour and follow any edge, straight or curved. Using the convenient table slot, the operator merely turns up a starting edge, starts the material through the rolls and lets go.

• Weight: 207 lbs
• Dimensions: 25 x 25 x 41 in
• Capacity: 20 Ga. maximum. Working range 20-26 gauge
• Flange Height: Approx 7/32" For open-end fittings, straight and irregular curves
• Motor: 1/3 HP, 1800 RPM for 115 volt, single phase operation

    $3,950.00

• A perfect partner for the TK 16-gauge Pittsburg Roll Former
• Puts a 3/8″ outside flange on straight or curved sheet metal edges
• Puts a flange on material with a diameter of as little as 2″.

• Weight: 635 lbs
• Dimensions: 36 x 28 x 48 in
• Capacity: 16 Gauge Aluminum, Copper, and Brass
• Motor: 0.75 HP, 110V, Single Phase″
• Speed: Approx. 18′ Per Minute
• UPS: UPS Capable
