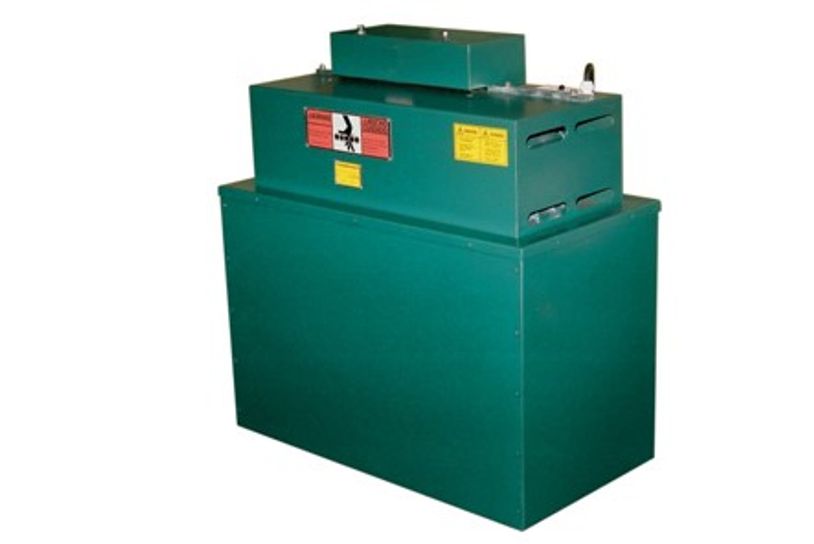

TK 24 Ga. Pitts. with Stand

---

       $3,150.00

On the job site or in the shop, this portable little rollformer is a work horse for 24 gauge and lighter material. It is available with power flanging attachment and is perfect for field use.  Steel stand included.

Without Flanger Only $3150

With Flanger Only $3750

       $3,750.00

On the job site or in the shop, this portable little rollformer is a work horse for 24 gauge and lighter material. It is available with power flanging attachment and is perfect for field use.  Steel stand included.

Without Flanger Only $3150

With Flanger Only $3750

• Weight: 305 lbs
• Dimensions: 41 x 25 x 30 in
• Capacity: 24 Gauge Mild Steel
• Motor: 1/2 HP, 1700 RPM, 115 Volt, Single Phase, 60 Hz – Standard (230/1/50 available)
• Depth of Pocket: Approx. 5/16″ (7.9mm) with hammer edge of 3/8″ (9.53mm)
• Speed: Approx. 35 FPM
• Flange Height: 3/16″ (4.76mm)
• Dimensions Roll Former: 30″ x 14″ x 20″ (762mm x 356mm x 508mm)
• Dimensions Stand: 35″ x 14″ x 24″ add 6″ around for shipping

        $5,250.00

 A workhorse! The heart of any HVAC sheet metal shop.  This 5 station 20 Gauge Pittsburgh lock roll former is offered with choice of Drive Cleat or Acme Rolls on the other outboard side. Powered by a 1 HP motor with V-belt drive, this machine is built for dependability.

Fits on your Lockformer!
Optional Flanging Attachment for
TK 20 Ga. Pittsburgh Roll Former
$1050

• Weight: 360 lbs. (136kg
• Dimensions: 40″L x 24″W x 44″H (1016mm x 610mm x 1118mm)
• Capacity: 20-26 Gauge Mild Steel
• Motor: 1 HP, 115/230 Volt, 1800 RPM
• Depth of Pocket: 5/16″ (7.9mm)
• Speed: Approx. 25 FPM

         $7,950.00

The Tin Knocker 16ga Pittsburgh Roll Former is versatile heavy-duty machine, designed to create multiple edge profiles via 7 forming stations and 2 forming positions. In one position, the inboard rolls form the Pittsburg lock. In the second position, the outboard rolls can create 4 different profiles via the 4-step gauge. Each step in the gauge creates a different profile, which include:

1. 1/4” right-angled flange
2. 1/2” right-angled flange
3. Standing seam
4. T-connection

The tooling to create these 4 different profiles is included and installed from the factory, making this an exceptionally versatile machine for fabricators. There are also additional rolls available to swap into the outboard position, allowing the creation of Acme and drive cleat profiles.

        $5,850.00

Notch,bead,crimp and roll complete round starting collars, 3″ to 14″ in diameter out of 24 to 30 gauge galvanized – in seconds, not minutes and with only one pass! Just cut to width and length or use scrap. This machine uses either 3″ or 6″ width blanks with simple movement of the crimp roll.

Capacity: 24-30 Gauge Speed: 30ft./minute
