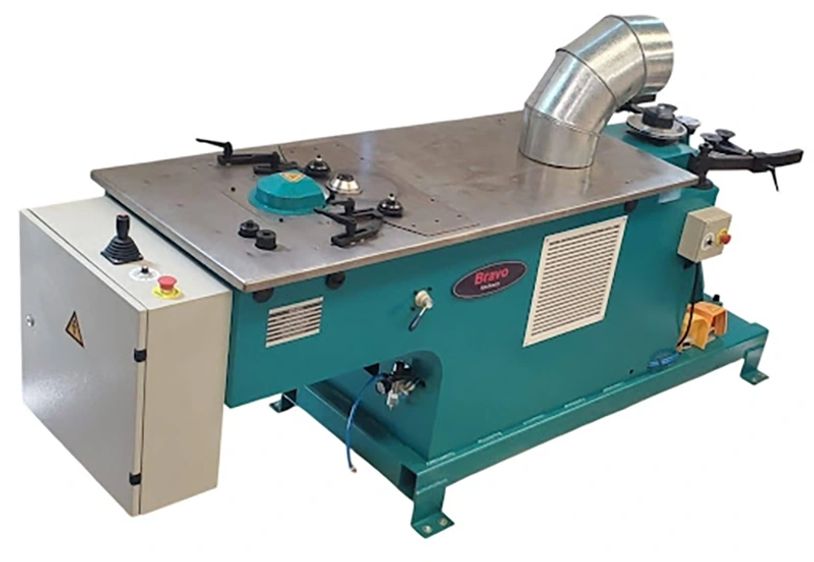

Gorelocker - Model GL2T



Make your own round fittings: elbows, reducers…. and cost effectively!
Two stations in a single machine: one for edging and one for closing. The machine is always ready to work, with no need to change tools. Produce elbows and reducers quickly, easily, and economically. At a much lower price than the popular brand.

A great, complementary machine to our Spiral Duct Forming Machine.

Specs







  • Diameter Range: 5” to 50”
  • Material Thickness: 0.4 – 1.5 mm (26 – 16 Ga) galv / 0.4 – 1.0 mm (26 – 20 Ga) SS
  • Forming speed: Max. Adjustable up to 120 m/min. (394 fpm)
  • Production time: 90 sec. (bend ø 200 mm, 90° / 4 segments)
  • Electrics: 4KW, 220volts/3phase/60Hz
  • Footprint: 120 x 36 inches
  • Weight: 2,300 lb
