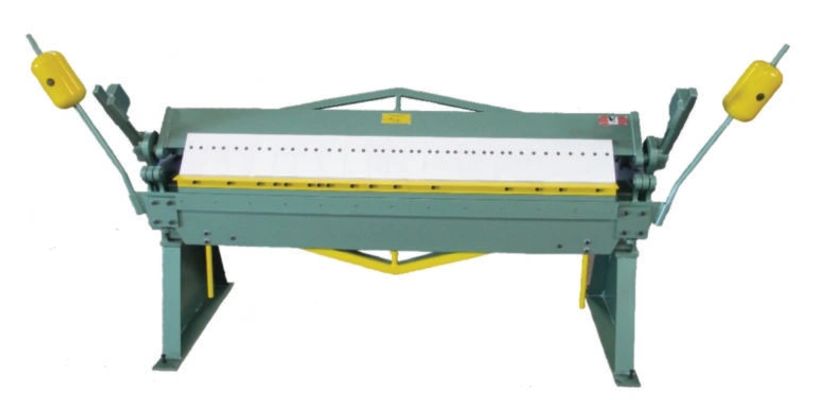

TK 616 Universal Brake

---

   $8,250.00

 An incredibly universal hand brake. Featuring box & pan fingers up top and segmented, relocatable bend apron tooling below. Perfect for complex parts to include flange down bends, transverse duct forming & much more. With strategically positioned counter weights this brake makes for easy and smooth manual bending.

• Capacity with lower tooling flanges: 72” x 16 gauge (1.6mm)
• Capacity without lower tooling flanges, 72” x 20 gauge (1.0mm)
• Lift of beam: 1.5″” (38.1mm)
• Front to back ram adjustment: 1/2″ (13mm)
• A minimum reverse bend of 5/8″ (16mm)
• Min flange width: 1″ (25mm)
• Finger widths: 1″, 3″, and 4″ (50.8, 76.2, and 101.6mm)
• Lower segment tooling widths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
• Bending beam tooling (segmented) lengths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
• Maximum transverse bend in center of machine: 2″ (50.8mm)
• Maximum transverse bend at end of machine: 3″ (76.2)
• Footprint with counter weights: 95x38x54in (2413x965x1346x1372mm)
• A shipping weight of 1850 lbs. (839kg)

   $5,800.00

The Tin Knocker 816 Leaf Brake is a heavy duty, manual sheet metal brake, capable of bending material up to 8 feet wide and 16 gauge weight. The 816 is an industrial-quality brake, designed and built to last.

The Tin Knocker 816 Leaf Brake includes the following features:

• A spring steel nose bar for durability and long-lasting service
• A heavy plate fabricated frame, paired with a full-length stiffening bar to bend smoothly and consistently to maximum material capacity.
• A heavy-duty clamping mechanism, and bronze bushings at pivot points with zirks for lubrication. Easily serviceable and rebuildable.
• A simple, adjustable angle-stop for accurate, repeatable bends up to 135 degrees.

 $6,850.00

The Tin Knocker 1018 Leaf Brake is a heavy duty, manual sheet metal brake, capable of bending material up to 10 feet wide and 18 gauge weight. The 1018 is an industrial-quality brake, designed and built to last.

The Tin Knocker 1018 Leaf Brake includes the following features:

• A spring steel nose bar for durability and long-lasting service
• A heavy plate fabricated frame, paired with a full-length stiffening bar to bend smoothly and consistently to maximum material capacity.
• A heavy-duty clamping mechanism, and bronze bushings at pivot points with zirks for lubrication. Easily serviceable and rebuildable.
• A simple, adjustable angle-stop for accurate, repeatable bends up to 135 degrees.

 $8,150.00

The Tin Knocker 1016 Leaf Brake is a heavy duty, manual sheet metal brake capable of bending up to 16 gauge sheet metal as wide as 10 feet. The 1016 leaf brakes is an industrial quality brake, designed and built to last.

Features Include:

• A spring steel nose bar for durability and long-lasting service
• A heavy plate fabricated frame, paired with a full-length stiffening bar to bend smoothly and consistently to maximum material capacity
• A heavy-duty clamping mechanism, and bronze bushings at pivot points with zirks for lubrication
  • Bushings and design of the machine make it easily serviceable and rebuildable
• A simple, adjustable angle-stop for accurate, repeatable bends up to 135 degrees
