TK Manual Crimper Beader (w/Pedestal)

---

  $985.00

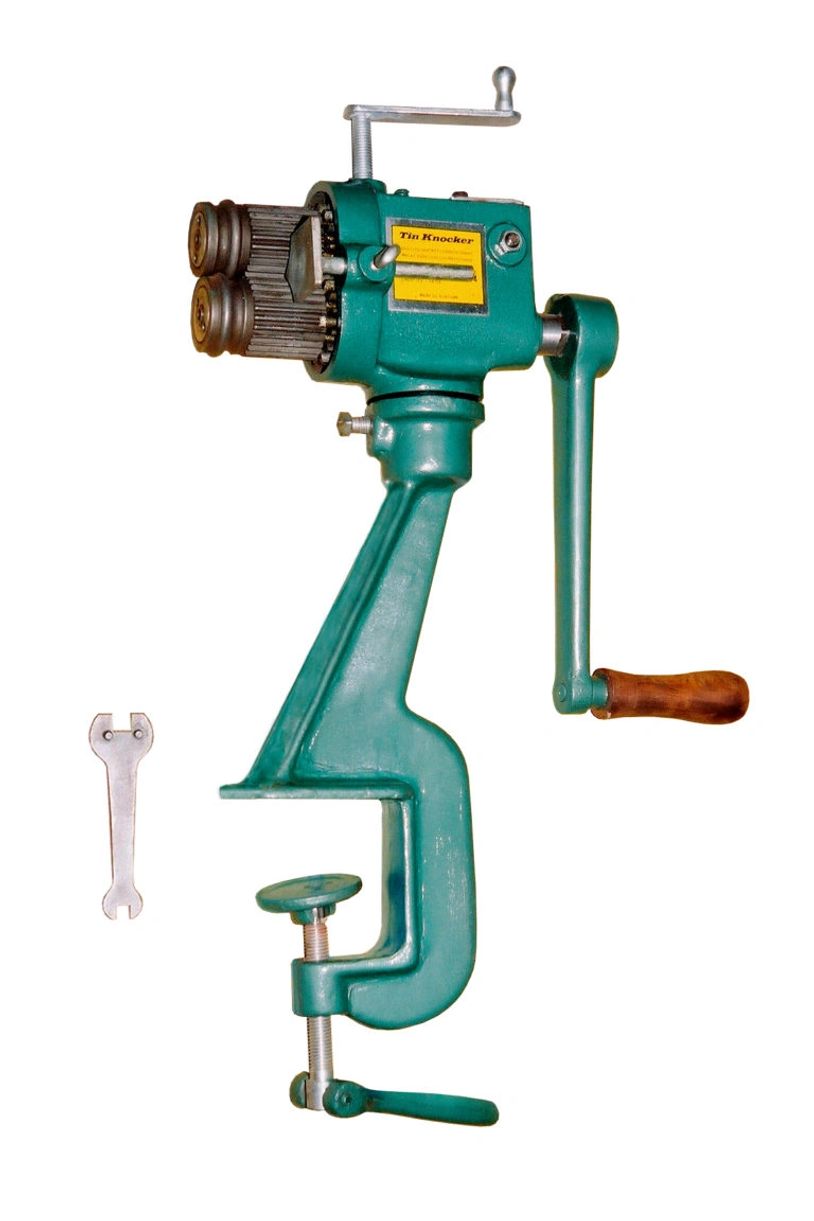

The Tin Knocker Manual Crimper Beader is a simple and durable, bench-mounted machine that can crimp and bead light-gauge sheetmetal in a single pass. It’s lightweight and easy to transport, and can quickly be set up without any special tools, thanks to the robust clamping mechanism.

Adjusting the manual crimper beader is quick and easy, with a manual depth gauge to accommodate various material depths, plus an upper crank handle to adjust distance between rolls and forming depth.

3 sets of tooling included with purchase make the machine exceptionally flexible for all of your beading and crimping needs. See ‘More Information’ tab below for details on included tooling.

 $1,250.00

The Tin Knocker Manual Crimper Beader is a simple and durable, bench-mounted machine that can crimp and bead light-gauge sheetmetal in a single pass. It’s lightweight and easy to transport, and can quickly be set up without any special tools, thanks to the robust clamping mechanism.

Adjusting the manual crimper beader is quick and easy, with a manual depth gauge to accommodate various material depths, plus an upper crank handle to adjust distance between rolls and forming depth.

3 sets of tooling included with purchase make the machine exceptionally flexible for all of your beading and crimping needs. See ‘More Information’ tab below for details on included tooling.

• Material Capacity: 0.030"/22 ga
• Maximum Crimp Width: 1-1/2"
• Bead diameter outside, large bead : 1/4"
• Bead diameter outside, small bead : 1/8"
• Max. Distance, Bead Center-to-Edge : 1-1/2"
• Dimensions: 26”x16”x12”
• Shipping weight: 28 lbs
• Thickness range of bench top for mounting : 3/4" to 3-1/2"

 $1,350.00

 The Tin Knocker 724 Combination Machine is a versatile, bench-mounted, deep throat machine that can create 6 different edge profiles with the included tooling (see ‘More Information’ tab for tooling details). It’s lightweight, easy to transport to job sites, and can quickly be set up without any special tools, thanks to the robust clamping mechanism.

  $5,250.00

The Tin Knocker Power Crimper Beader is a durable and versatile machine, capable of performing most beading and swaging functions with mild steel as thick as 18 gauge. The Power Crimper Beader has a deep, 13-inch throat, paired with a heavy-duty adjustable back gauge, to make handling material easy, regardless of size or depth.

The machine is built for durability, and is made of solid, machined cast iron, mounted on a sturdy sheet metal cabinet. A two-pedal foot switch allows the operator to have both hands free when feeding material or changing direction of the rolls.
