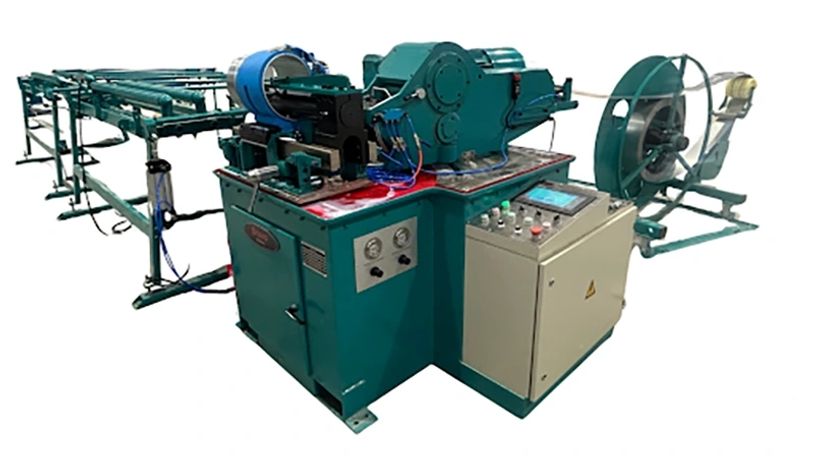

SPIRAL DUCT MACHINE - Model TF360

 This machine allows you to manufacture spiral duct in gauges 26 to 18, ranging from 3 to 62 inches. With its rigid aluminum dies, it produces high-quality tubes. The Slitter cutting system offers speed and the best finish.

Specs





  • Capacity: Gauge 26 – 18 galvanized steel
  • Slitter cutting system: precise and quiet
  • Main drive mechanism controlled by motor
  • with frequency inverter
  • Vertical decoiler and discharge table
  • Lock-seam closing roller with hydraulic
  • piston lift
  • Hydraulic pressure control on traction roller
  • Automatic length measuring system with
  • encoder and photosensitive sensor
  • Easy to Program: English – Spanish
  • On-Site Training available
  • Electrics: 12 KW, 220volts/3phase/60Hz
  • Footprint: 190 x 165 inches
  • Weight: 6,050 lb
