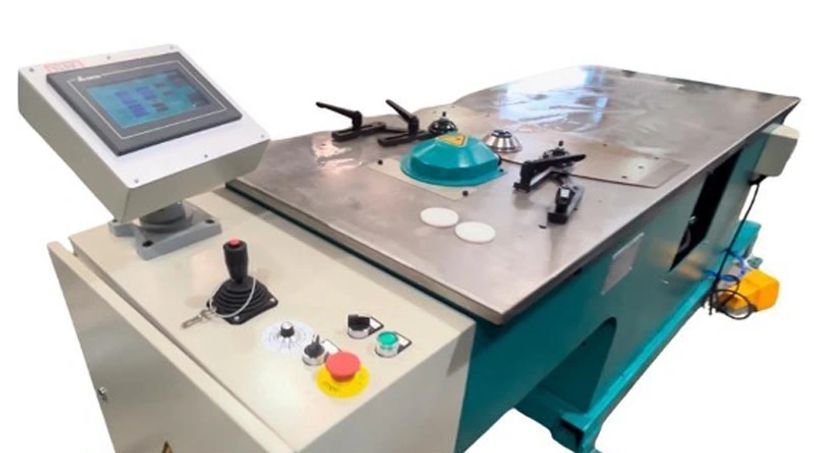

AUTO Gorelocker Model GL2T-Plus


Power, Precision, and Productivity — All in One Machine.
Equipped with a programmable control system for precise seam forming, this machine combines two stations in one — one for flanging and one for closing. Always ready to work, it requires no tooling changes and delivers fast, effortless production of elbows and reducers. Achieve professional results at a fraction of the cost of other brands.


A perfect companion for Spiro Duct fabrication — efficient, reliable, and built for performance.A great, complementary machine to our Spiral Duct Forming Machine.

Specs



  • DELTA PLC and Touchscreen for forming sequence programming.
  • Diameter Range: 5” to 50”
  • Material Thickness:
  • 4 – 1.5 mm (26 – 16 Ga) galv
  • 4 – 1.0 mm (26 – 20 Ga) SS
  • Forming speed
  • Adjustable up to 120 m/min. (394 fpm)
  • Production time:
  • 90 sec. (bend ø 200 mm, 90° / 4 segments)
  • Electrics: 4KW, 220volts/3phase/60Hz
  • Footprint: 120 x 36 inches Weight: 2,300 lb
